Style
  • Basket
  • Box
  • Panel
  • Tube

Size

Nominal Propeller Diameter
(1 inch = 25.4 mm)


Guard
Fan tested with guard: Yes or No

Refer to ANSI/ASAE S493.1 JUL03, Guarding
for Agricultural Equipment to determine
appropriate guarding for your application.
This standard can be found at the American
Society of Agricultural and Biological
Engineers website, www.asabe.org.Type


Airflow (thrust cfm)

Airflow (thrust cfm)=cubic feet per minute calculation based on
ANSI/AMCA 230-12 Eq. 9.6 IP


Efficacy Ration (thrust cfm/W)

The higher the ER the more efficiently a fan uses electricity


Thrust

Thrust force created by fan.
1 Pound force (lbf) = 4.45 Newton (N)


Input Power

kW of electricity drawn by motor.
Multiply kW by hours of operation to find kWh electricity usage.


Thrust Efficiency

Amount of thrust created per unit of power
1 (lbf)/kW = 4.45 N/kW

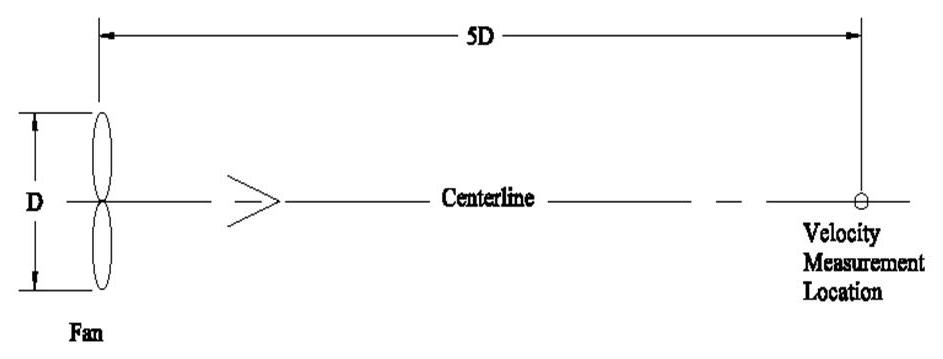

5D Centerline
1 fpm = 0.00508 m/s
